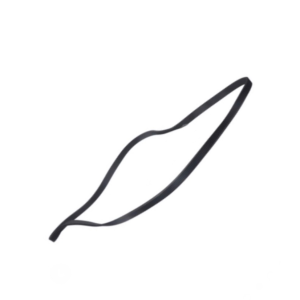

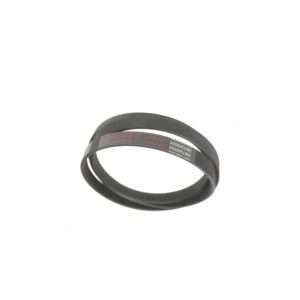

Compatible Beko Washing Machine Drive Belt 1171J5 / 2907260500 / 2466300203

Description

Compatible Beko washing machine drive belt 1171J5 for OEM part 2907260500 (also 2466300203 / 1171J5PJE). Elastic poly-vee belt, length 1171 mm, section J, 5 ribs, used on the listed Beko washing machines and washer-dryers.

Also known as / replaces / compatible part numbers

• 2907260500
• 2466300203
• 1171J5
• 1171J5PJE
• 2907260100

What it does / when to replace

The drive belt transfers drive from the motor pulley to the drum. Fit a replacement if the motor runs but the drum does not turn, the machine stops mid-cycle, or the old belt is snapped, glazed or frayed.

• Motor runs but drum does not spin
• Snapped, cracked or glazed belt behind the rear panel
• Burning rubber smell after spin

What’s in the pack

• 1 x compatible 1171J5 / 1171 mm 5-rib poly-vee drive belt

Compatible models

LLF10W1, WDI85143, WDMY94AQUA, WDW85122, WDW85143, WMB101240, WMY1012430, WMY101283, WMY712230, WMY71483, WMY71483S, WMY81283LMSB2, WMY814330S, WMY81483, WMY81483S, WMY914330, WMY914330S, GWN37431, GWN48431, WTE7712BS0W, WTV8633XC0M, GWN37432, GWN48440, LLF10W2, LLF10W3, WITV8714B0W, WM1012CDS, WMY712230S, WDW85120, WTLD81487P, WTE7733XC0M, WTV9712BS0W, HTV8733XC0W, HTV8733XC0M, WMCF8744WB, WTE10734XS0W, WTE10744XB0W, WTV8734XC0M, WTV8734XS0W, WTV8744XWDOS, WTV9734XC0M, WTV9734XS0W, HTE7613YBST, HTE8613YBST, HTV8736XC0M, HWD7526WW, LLF10W4, WTE7736XC1M, WTLD81467P, WTS7200W, WTS9400W2, WTV1744XWAQDOS, WTV8833XC0M, LLF10W5, WMB9455, WTE10736S0W, WTE10744XWDOS, HTE8614YBST, LLF08W8, LLF09W9, LLF10EDW1, LLF10W6, WMB8455, WTE7712BS1W, WTE7736XC2M, WTLD81468P, WTS8200WDOS, WTS8400WDOS, WTS9400W3, WTV7744XWDOS, WTV8712BS1W, WTV9736S0W, HWD7527WW, HWD8527SW, LLF07W15, LLF11W2, WTV9744XWAQ, UWM7014RO, WMB9456, LLF08A5, HWD7527BB, HWD7526BB, WM1014CHS, WTV8833XC1M, WM1015CHS, GWN37433, HTV8736XC1M, WCCU07ED, WITC8410B0W, WTV9712BS1W, HWD8526SW, WDI8511B0W, GWN48441, GWN49651, WTE14736HT, HTE8713YBST, GWN9200MF, ELF914DD4, ELF914-1B, ELF1014-1B, WF121LW, ELF1014-6S, ELF1014DD4, ELF814B1MI, ELF814-2B, ELF1014D1, ELF714B1MI, ELF714-2B, CELL10140TW, ELF1014-5S, GW5P57410W, GW5P58410W, GWP694210W

Fitment & care notes

• Isolate power and remove the rear panel to access the motor and drum pulleys.
• Loop the elastic belt onto the motor pulley first, then stretch it onto the drum pulley and rotate the drum by hand to seat the ribs.
• Avoid overloading the machine – heavy loads are a common cause of belt failure.

FAQs

What size is this belt?
1171 mm long, section J, 5 ribs (1171J5 / 1171J5PJE).

Which OEM numbers does it match?
It matches Beko / Arcelik numbers 2907260500 and 2466300203, and also 2907260100.

Will it fit my Beko washer-dryer?
Yes for the listed models. Match the marking on your old belt (1171J5) and your model number.

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
