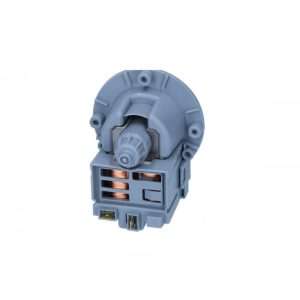

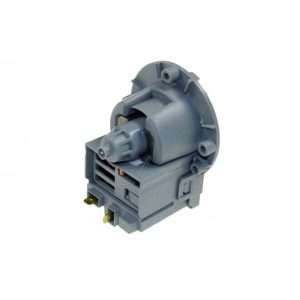

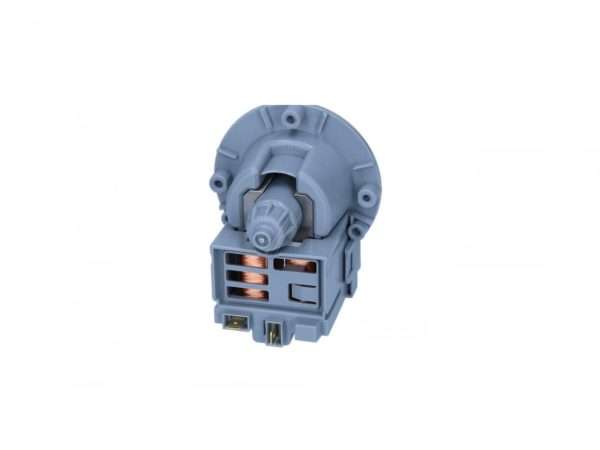

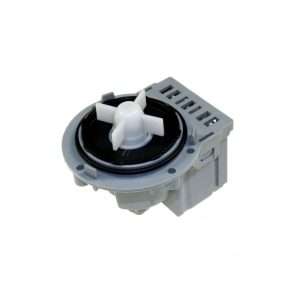

Genuine Askoll Samsung Screw-Fixing Drain Pump M224 / M231XP 40W
£19.45 inc VAT
- Description
- Delivery Information
- Additional information
Description
Genuine Askoll screw-fixing washing machine drain pump M224 / M231XP 40W for Samsung laundry appliances. Magnetic drain pump, 220-240V / 50Hz / 40W / 0.2A, round-top screw-on fixing to the pump housing. Also referenced as Askoll RS0602 / 296005 and Candy/Hoover 92129444.
Also known as / replaces / compatible part numbers
- M224 / M224XP
- M231XP / M231 XP
- RS0602
- 296005
- 49016211
- 92129444 (Candy / Hoover)
- DC31-00030A / DC31-30008D (Samsung cross-ref)
- PMP988 (compatible screw-on equivalent type)
What it does / when to replace
The drain pump empties wash and rinse water from the machine. Fit a replacement if the appliance will not drain, leaves water in the drum, or the pump is noisy or seized.
- Machine not draining / water left in the drum
- Drain pump humming, grinding or seized
- Error codes linked to drain failure after the filter is cleared
What’s in the pack
- 1 x genuine Askoll screw-fixing drain pump (M224 / M231XP 40W type)
Compatible models
B1215J, B1445AGW, Q1244SGS, WF7604NAW, B1245A, B1445SGS, WF0604NBE, WF8602NFW, B1245AGS, J1453SGS, WF0702WKE, WFB1456GW, B1245SGS, P1453SGS, WF0702WKU, WFB145NS, B1415J, Q1233GW, WF1804WPC, WFJ145N, B1415JGS, Q1235SGS, WF1804WPU
Fitment & care notes
- Confirm your old pump is the Askoll screw-fixing (round top) 40W type – plug-in and different wattage pumps are not interchangeable.
- Clean the pump filter/trap regularly; coins and debris often block draining before the motor fails.
- Match mounting, hose stubs and electrical connectors to your original pump.
FAQs
Q: What are the electrical ratings?
A: 220-240V AC, 50Hz, 40W, 0.2A (Askoll M231XP / M224 screw-fixing type).
Q: Is M224 the same as M231XP?
A: Yes for this screw-fixing 40W family. M224 / M224XP and M231XP are the Askoll round-top screw-on drain pump types used here.
Q: Is this a genuine Askoll pump for Samsung?
A: Yes. This is a genuine Askoll M224 / M231XP 40W screw-fixing drain pump supplied for Samsung washing machines that use this pump type.
If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
We strive to dispatch all orders promptly. If an item is unavailable, we will notify you by email. You may cancel delayed orders at any time before dispatch for a full refund.
Delivery Services
- Standard UK Delivery: 2–5 working days.
- Next Day Delivery: Available for in-stock items ordered before the cut-off time on working days. Orders placed after the cut-off, on weekends, or bank holidays will be processed the next working day.
Additional information
| Brand | Askoll |
|---|---|
| Compatible Brand | Samsung |
| Number of Items in Set | 1 |
| Type | Drain Pump |
| Compatible Model | B1215J, B1445AGW, Q1244SGS, WF7604NAW, B1245A, B1445SGS, WF0604NB |
| Set Includes | Drain Pump |
| Colour | Grey |
