Genuine Hotpoint Large Ceramic Double Hob Element C00089645 | 2200/1000W Also 482000027790

Description

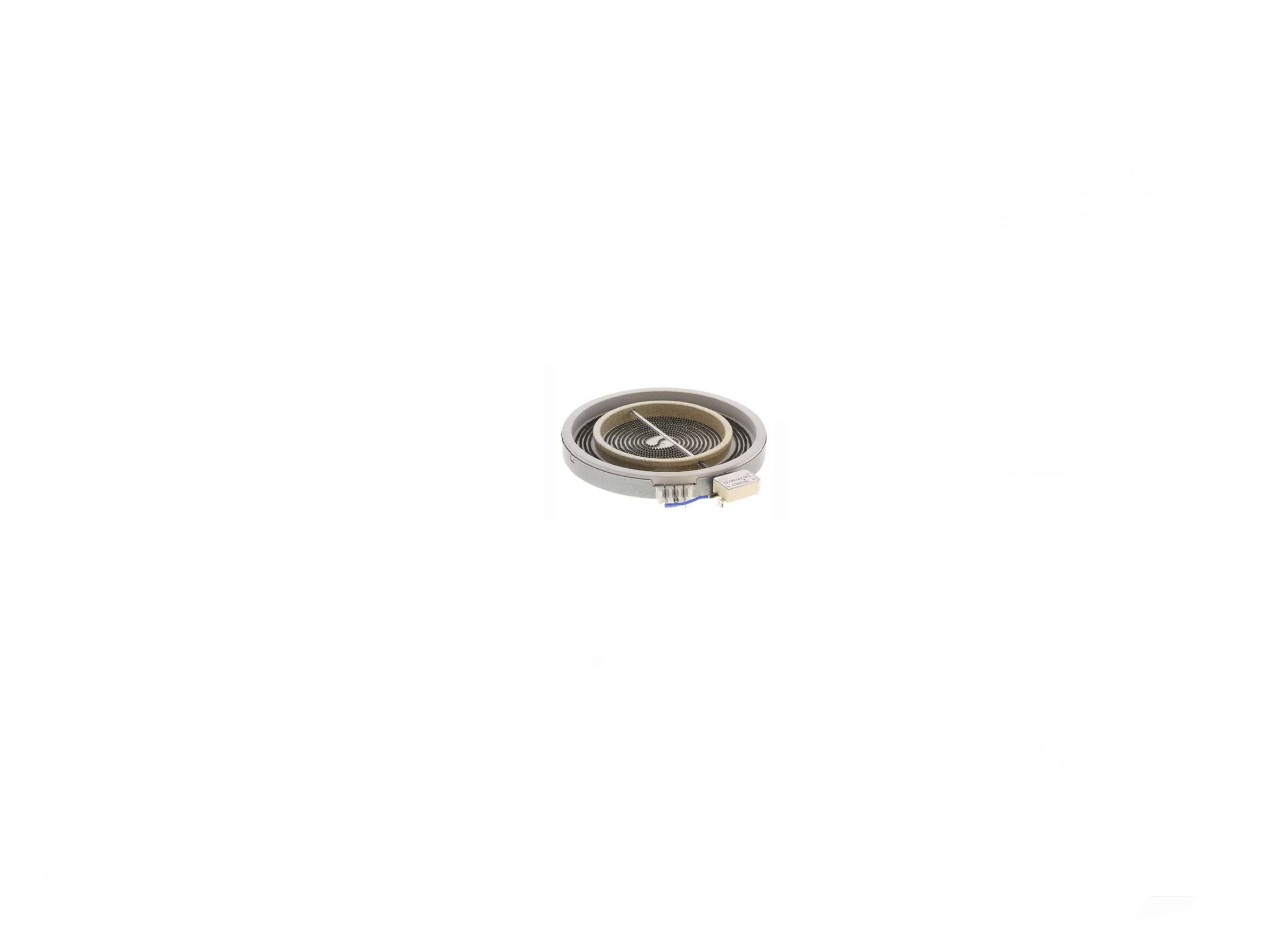

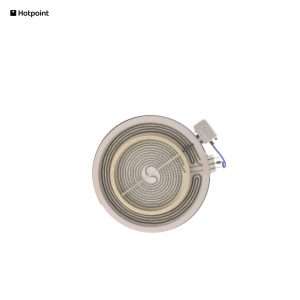

Genuine Hotpoint large ceramic double hob element C00089645. OEM dual-circuit ceramic hotplate rated 2200W / 1000W (230V), approximately 230mm outer diameter, for selected Hotpoint ceramic hobs and cookers. Also known as Whirlpool/Indesit 482000027790 and Eika 2312 333 822 / 16001761700.

Also known as / replaces / compatible part numbers

• C00089645
• 482000027790
• 2312 333 822
• 16001761700

What it does / when to replace

The dual element heats the large ceramic cooking zone (outer and inner circuits). Replace if the zone will not heat, only half the ring works, or the element has failed open-circuit.

• Hob zone cold or heating only on one circuit
• Intermittent heat or burnt element
• Visible damage under the ceramic glass after safe inspection

What’s in the pack

• 1 x genuine Hotpoint large ceramic double hob element C00089645

Compatible models

BE72K, BE72SS, CRM641DC, CRM641DC (T), CRM641DX, CRM641DX (T), E6014, E601X, E6014 (T), E7134, E713 (T), EC6005, EC6005 (T) & Many More

Fitment & care notes

• Approximate sizes: upper outer diameter 230mm, upper inner diameter 205mm, underside seat about 200mm.
• Dual rating 2200W outer / 1000W inner at 230V.
• Isolate the cooker from the mains before lifting the hob top or changing the element.

FAQs

Is this a genuine part?
Yes. This is the genuine Whirlpool-group ceramic element sold as C00089645 (also 482000027790).

What is the power rating?
Dual circuit 2200W / 1000W at 230V.

What diameter is the element?
Approximately 230mm outer diameter (catalogue: upper outer 230mm, upper inner 205mm, underside seat 200mm).

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
