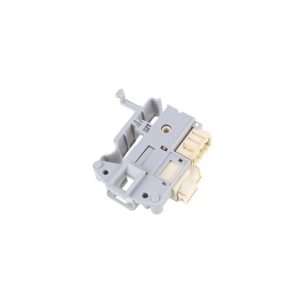

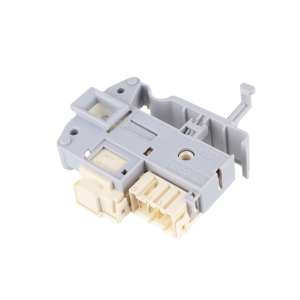

Compatible Indesit Washing Machine Door Interlock DOR9484 | DI.S2 / Rold DK

Description

Compatible Indesit washing machine door interlock DOR9484. Quality aftermarket DI.S2 / Rold DK-series lock for selected Indesit washing machines.

Also known as / replaces / compatible part numbers

• DOR9484

What it does / when to replace

The door interlock keeps the washing machine door locked during the cycle and releases it when it is safe to open. Fit a replacement if the door will not lock, the machine will not start, or the door stays locked after the cycle.

• Door will not lock or unlock
• Machine will not start (door-lock fault)
• Door remains locked after the cycle

What’s in the pack

• 1 x compatible washing machine door interlock

Compatible models

F100879 (BWE61252WFR), F104273 (BWE71253XKPL), F104274 (BWE71253XSPL), F100867 (BWE71253XWSSFR), F100881 (BWE71253XWSSFR), F102909 (BWE71253XWSSSEU), F102085 (BWE71283XWIT), F153208 (BWE71453WUK), F100891 (BWE71453XSFR), F102910 (BWE71453XWSSSEU), F103482 (BWE71483XWNL), F103122 (BWE81282LB), F102911 (BWE81484XWSSS EU), F102248 (BWSE61051), F102056 (BWSE61253WFR), F102237 (BWSE71252LB1), F102057 (BWSE71283XWWGGIT), F103119 (BWSE81082LB), F103120 (BWSE81282LB), F103116 (BWUE51051LB), F072808 (IWD7108ECOEE-E), F062523 (IWDC7105SEX60HZ), F062526 (IWDC7125BEX60HZ), F062562 (IWDE6105BEU), F062563 (IWDE7105BEU), F069707 (IWDE71257BRU), F078807 (IWDE7125BECOEX), F062565 (IWDE7125BEU), F062570 (IWDE7125BEX), F062572 (IWDE7125BUK), F062533 (IWDE7125SEU), F062573 (IWDE7125SUK), F062576 (IWDE7145BEU), F062577 (IWDE7145BUK), F074767 (IWDE7145KUK), F062578 (IWDE7145SUK), F078718 (IWDE71680ECODE), F069094 (IWDE7168UK), 62017 (IWE5105EU), F062017 (IWE5105EU), 62018 (IWE5125EU), F062018 (IWE5125EU), F062018 (IWE5125EU-E), 62021 (IWE6085EU), F062021 (IWE6085EU), F069749 (IWE6085PL), F078809 (IWE61051CECOEU), F087488 (IWE61051CECOEU), F085005 (IWE61051EU), 62023 (IWE6105EU), F062023 (IWE6105EU), F076366 (IWE6105EU), F062023 (IWE6105EU-E), F068227 (IWE6105PL), F071503 (IWE6108ECOWE), F075768 (IWE61251ECOPL), F075768 (IWE61251ECOPL-E), F085007 (IWE61252CECOEU), F087530 (IWE61252CECOEU), F062035 (IWE6125BEU), F062038 (IWE6125BIT), 62028 (IWE6125EU), F062028 (IWE6125EU), F076404 (IWE6125EU), F062028 (IWE6125EU-E), F069640 (IWE6125PL), F073665 (IWE6126BSECOIT), F073665 (IWE6126BSECOIT-E), F078751 (IWE61282CECOEU), F074769 (IWE7105BCIS.L), F062040 (IWE7105BEU), F076388 (IWE7105BEU), F077239 (IWE71082ECOEE), F078752 (IWE71082SCECOEU), F077004 (IWE71082SECOEU), F069532 (IWE7108ECOEE), F062041 (IWE7108SEU), F062041 (IWE7108SEU-E), F078802 (IWE71251BECOEU), F078803 (IWE71251SECOEU), F082439 (IWE71252CECOEU), F061483 (IWE7125BEU), F076389 (IWE7125BEU), F061483 (IWE7125BEU-E), F062728 (IWE7125BIND), F069639 (IWE7125BPL), F062043 (IWE7125SEU), F075795 (IWE71281ECOPL), F074652 (IWE71282ECOEU), F074652 (IWE71282ECOEU-E), F077005 (IWE71282ECOPL), F077243 (IWE7128BECOEX), F062044 (IWE7128BEU), F069531 (IWE7128ECOEE), F073462 (IWE7129BSECOIT), F078781 (IWE71451BCFR), F083322 (IWE71451BECO), F079042 (IWE71451BECOEU), F083322 (IWE71451BECOUKT), F085061 (IWE71451BUKC), F081774 (IWE71451SLCFR), F062046 (IWE7145BEU), F062046 (IWE7145BEU-E), F062729 (IWE7145BFR), F062730 (IWE7145BUK), F081958 (IWE7145BUK.C), F062730 (IWE7145BUKE), F069085 (IWE7145KUK), F062732 (IWE7145SUK), F074649 (IWE71482BECODE), F074649 (IWE71482BECODE-E), F074648 (IWE71482BFR), F074648 (IWE71482BFR-E), F062050 (IWE7148BDE), F069209 (IWE7148BFR), F074650 (IWE71682BCODE-E), F074650 (IWE71682BECODE), F074651 (IWE71682BECOEU), F074651 (IWE71682BECOEU-E), F062052 (IWE7168BDE), 62053 (IWE7168BEU), F062053 (IWE7168BEU), F062734 (IWE7168BUK), F062735 (IWE7168SUK), F078828 (IWE81251SECO), F078828 (IWE81251SECOUK), F078827 (IWE81281ECOU), F078827 (IWE81281ECOUK), F078829 (IWE81281KECO), F078829 (IWE81281KECOUK), F074747 (IWE81281KUK), F074747 (IWE81281KUKE), F074746 (IWE81281SUK), F074746 (IWE81281SUKE), F074745 (IWE81281UK), F074745 (IWE81281UKE), F078754 (IWE81282BCECOEU), F074664 (IWE81282BECOEU), F074664 (IWE81282BECOEU-E), F075972 (IWE81282BECOPL), F075972 (IWE81282BECOPL-E), F074825 (IWE81282SLECOEU), F074825 (IWE81282SLECOEU-E), F071502 (IWE8128BECOWE), 60636 (IWE8128BEU), F060636 (IWE8128BEU), F062695 (IWE8128BFR), F073541 (IWE8128BGR), F060592 (IWE8128BIT), F069474 (IWE8128SLEE), F073457 (IWE8129BSECOIT), F073457 (IWE8129BSECOIT-E), F078830 (IWE81481ECOU), F078830 (IWE81481ECOUK), F078831 (IWE81481SECO), F078831 (IWE81481SECOUK), F074749 (IWE81481SUK), F074749 (IWE81481SUKE), F074748 (IWE81481UK), F074748 (IWE81481UKE), F074662 (IWE81482BFR), F074662 (IWE81482BFR-E), F062697 (IWE8148BFR), F078833 (IWE81681ECOU), F078833 (IWE81681ECOUK), F074750 (IWE81681UKE), 74665 (IWE81682BECOEU), F074665 (IWE81682BECOEU), F074665 (IWE81682BECOEU-E), F060637 (IWE8168BEU), F074822 (IWE91280BGR), F074822 (IWE91280SGR-E), F084831 (IWE91281BCECOGR), F080133 (IWE91281ECOU), F080133 (IWE91281ECOUK), F078756 (IWE91282SLCECOTK), F075171 (IWE91480UK), F075171 (IWE91480UKE), F078835 (IWE91481ECOU), F078835 (IWE91481ECOUK), F078736 (IWSD51051CECOEU ), F078850 (IWSD51051CECOEU ), F081487 (IWSD51051CECOEU ), 62063 (IWSE4125EU), F062063 (IWSE4125EU), F062063 (IWSE4125EU-E), 62064 (IWSE5085BEU), F062064 (IWSE5085BEU), F062064 (IWSE5085BEU-E), F069753 (IWSE5085BPL), F081550 (IWSE51050BCECOEU), F074816 (IWSE51050BECOPL), F074816 (IWSE51050BECOPL-E), F081494 (IWSE51051BCECOPL), F081492 (IWSE51051CECOEU), 62065 (IWSE5105BEU), F062065 (IWSE5105BEU), F062065 (IWSE5105BEU-E), F068229 (IWSE5105BPL), F062903 (IWSE5105CIS), F069569 (IWSE5108BEE), F071870 (IWSE5108BEU), F071870 (IWSE5108BEU-E), F069558 (IWSE5108EE), F074815 (IWSE51250ECOBPL), F074815 (IWSE51250ECOBPL-E), F081554 (IWSE51251BCECOPL), F078735 (IWSE51251CECOEU), F081551 (IWSE51251CECOEU), F081601 (IWSE51251CECOPL), 62066 (IWSE5125BEU), F062066 (IWSE5125BEU), F068230 (IWSE5125BPL), F072809 (IWSE5128ECOEE), F081602 (IWSE61051BCECOPL), F081485 (IWSE61051CECOEU), F075248 (IWSE6105BCIS.L), F078875 (IWSE6105CIS), F074771 (IWSE6108BCIS.L), F072553 (IWSE6108ECOEE), F072553 (IWSE6108ECOEE-E), F081486 (IWSE61251CECOEU), F081557 (IWSE61281CECOEU), F074772 (IWSE6128BCIS.L), F073110 (IWSE6128ECOEE), F073110 (IWSE6128ECOEE-E), F085621 (IWSNE61252CECOEU), F085623 (IWSNE61253CECOEU), F093655 (KSE2260WUA), F087661 (ND808LS), F084837 (NSD808LS), F087660 (NWK8108L), F087591 (NWK8128LB), F089103 (NWSK61051), F086457 (NWSK6125), F084286 (NWSK7125L), F084838 (NWSK8108L), F084839 (NWSK8128L), F087360 (NWUK5105L), F093211 (WA71600CH), F093210 (WA71600EU), F078748 (WDA71400EU), F088852 (WDA7514EU), F039739 (WISE10CSI), F039740 (WISE10CSI), F039739 (WISE8CSI), F080131 (WISXE10CIS), F090077 (WMA71400CH), F090029 (WMA71400EU), F087652 (WMA71600CH), F078811 (WMA71600EU), F088815 (XWDE75128XWKKKCIS), F088807 (XWDE751480XK), F088807 (XWDE751480XKUK), F088806 (XWDE751480XS), F088806 (XWDE751480XSUK), F088805 (XWDE751480XW), F088805 (XWDE751480XWUK), F087663 (XWDE751680XKFR), F101144 (XWDE751680XWFR), F085603 (XWE61052XWWGGPL), F082559 (XWE61251WFR), F084241 (XWE61251WPL), F085566 (XWE61252WFR), F088746 (XWE61252WSGFR), F085602 (XWE61252XWWGGPL), F083991 (XWE61451WDE), F082619 (XWE61451WEU), F085567 (XWE61452WEU), F086999 (XWE71083XWWGGPL), F082633 (XWE71251WEU), F082637 (XWE71251WPL), F082634 (XWE71252WEU), F084667 (XWE71252WPL), F085576 (XWE71252WSGFR), F086571 (XWE71252WWGFR), F089372 (XWE71283XWWGGIT1), F086693 (XWE71283XWWGGPL), F082608 (XWE71451WEU), (XWE71451WFR), F082561 (XWE71451WFR), F083739 (XWE71452WDE), F087249 (XWE71452WEU), F088749 (XWE71452WFR), F085575 (XWE71452WSGFR), F082592 (XWE71483XWDE), F085598 (XWE71483XWDE), F089373 (XWE71483XWEU1), F089374 (XWE71483XWSSSNL1), F085649 (XWE71683XWEU), F083582 (XWE71683XWSSSDE), F085600 (XWE71683XWSSSDE), F089375 (XWE71686XWSSSNL1), F089379 (XWEN71283X9WCZ1), F085611 (XWSE61052WEU), F086694 (XWSE61052WPL), F086998 (XWSE61052WWGEU), F085610 (XWSE61252WPL), F096346 (XWSE61252WPLL), F085616 (XWSE61253WEU), F096348 (XWSE61253WEUL), F085663 (XWSE71251XWWGGUA), F086695 (XWSE71283WWGGPL), F085550 (XWSE71283XWWGGIT), F088694 (XWSE81283XWWGGIT ), F085626 (XWSNE61253WEU), F096345 (XWSNE61253WEUL), F088781 (XWUE51052WSSSEU), F093654 (YSE2270ZWBUA) & Many More

Fitment & care notes

• Unplug the machine before removing the interlock.
• Compatible Electruepart DOR9484 type for machines that use a DI.S2 / Rold DK-series interlock – match the number on the old lock and your model list.
• Distinct from Electruepart DOR9486 (ZV-449 / E2 type) used on other Hotpoint / Indesit machines.

FAQs

Is DOR9484 a genuine Indesit part?
No. It is a compatible Electruepart-type interlock for DI.S2 / Rold DK applications.

How is it different from DOR9486?
DOR9486 is a ZV-449 / E2 type interlock. DOR9484 is the DI.S2 / Rold DK type – they are not the same lock.

When should I replace the interlock?
When the door will not lock, the machine will not start, or the door stays locked after the cycle.

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
