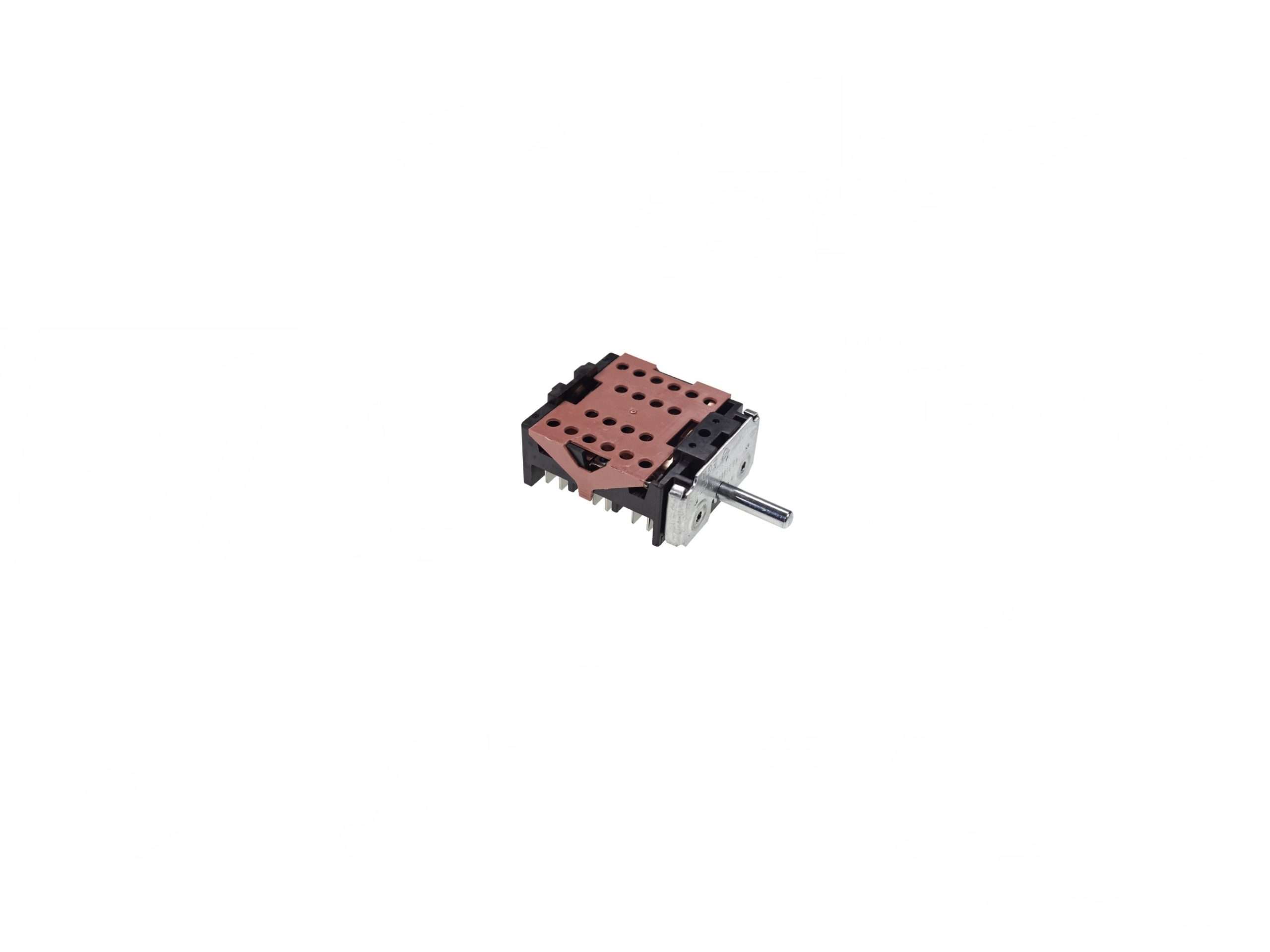

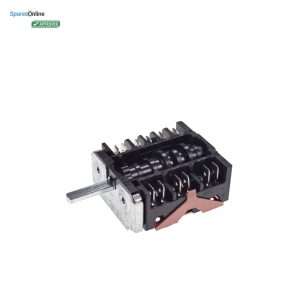

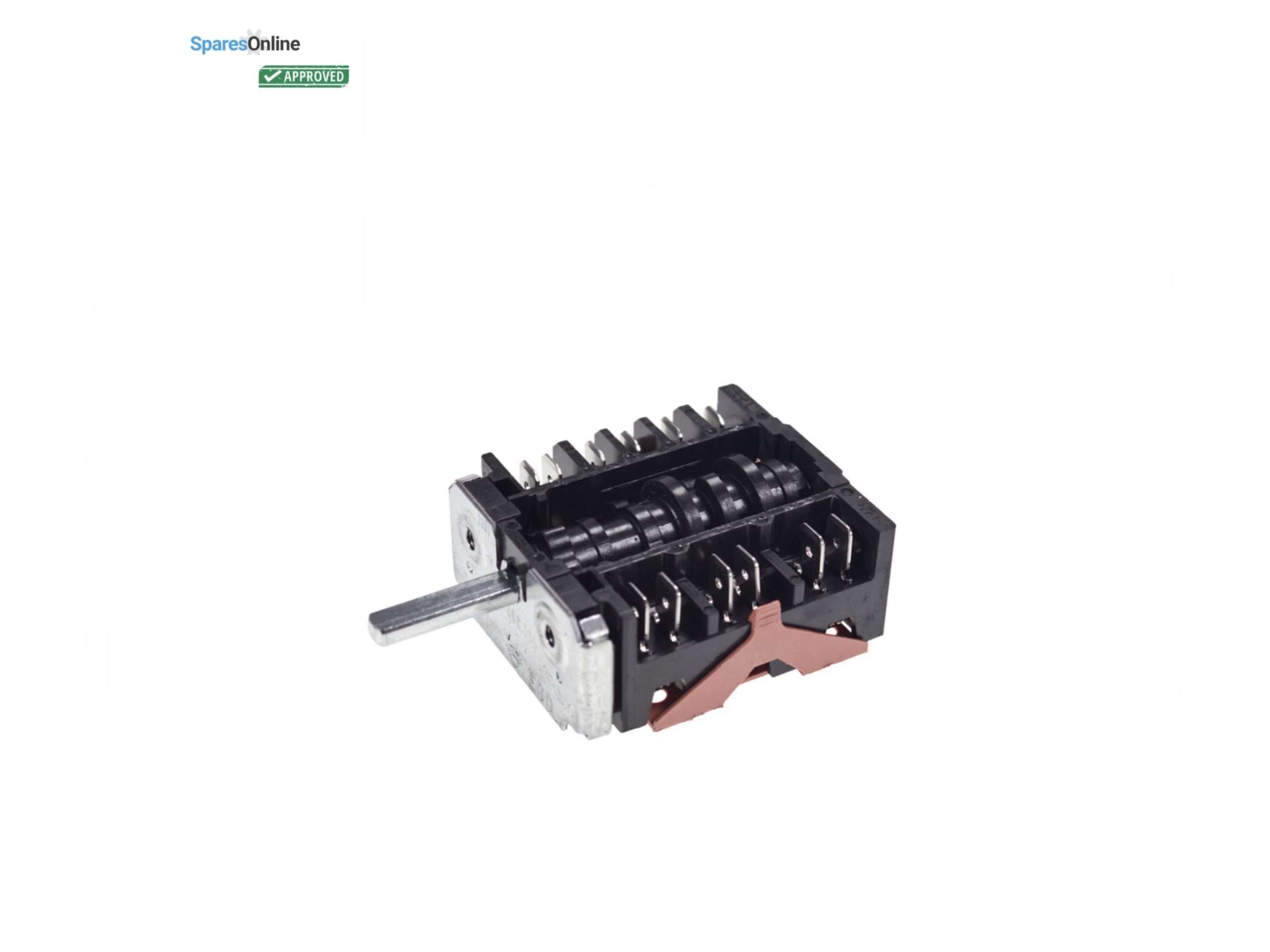

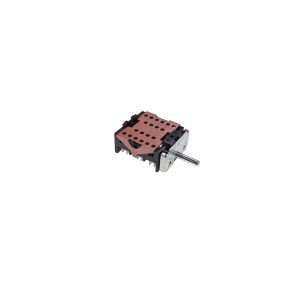

Compatible Leisure 6 Position Oven Function Selector Switch ELE9736 / EGO 46.27266.813

Description

Compatible Leisure oven and cooker six-position function selector switch ELE9736 (also EGO 46.27266.813). This replacement switch selects the cooking function on compatible Leisure ovens and cookers.

Also known as / replaces / compatible part numbers

• ELE9736
• EGO 46.27266.813

What it does / when to replace

The oven function selector switch is mounted behind the front control panel and lets you select the required cooking function. Replace it when the selector is loose, stiff, broken, or the oven will not select the required function.

Specifications

• 6 positions
• Switch dimensions: 49 x 57 x 27 mm
• 12 cable terminals
• 28 mm distance between fixing holes
• 6 mm spindle diameter
• 24 mm spindle length

Compatible models

AL6CDW, AP5PDS, AP5PDW, EB10CRX, GR6CVK, LEVC54K, LEVC54S, LEVC54W, LEVC54X, LEVC66K, LEVC66S, LEVC66W, LEVC66X, RCM10CRK, RCM10CRS, RM10CRK, RM10CRS, RM5CVK, RM5CVS, RM5CVSV, RM5CVW, RM5PVS, RM5PVW, RM6CVK, RM6CVS, RM6CVW, ZE10CRA, ZE5HVK, ZE5HVS, ZE5HVW, ZE6HVK & Many More

Fitment & care notes

• Isolate the cooker from the mains before fitting.
• The replacement switch is fitted behind the front control panel.

FAQs

Is this a genuine Leisure switch? No. This is a compatible replacement switch for selected Leisure ovens and cookers.

How many positions does ELE9736 have? ELE9736 is a six-position oven function selector switch.

What other number identifies this switch? The switch is also identified as EGO 46.27266.813.

What are the switch dimensions? The listed dimensions are 49 x 57 x 27 mm, with a 6 mm spindle and 24 mm spindle length.

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
