Compatible Leisure Fan Oven Heating Element 1800W ELE9327 | 082620838

Description

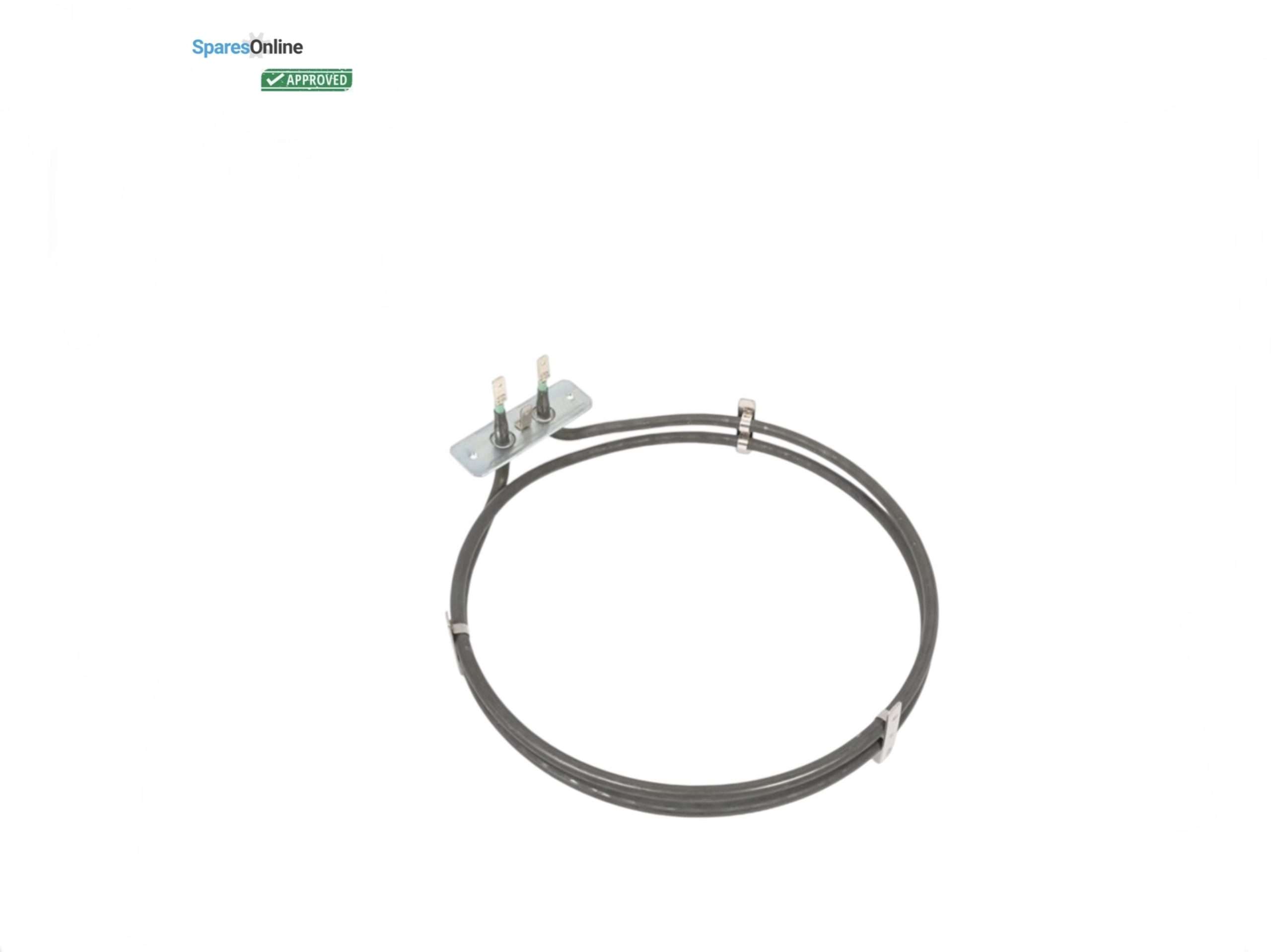

Compatible Leisure fan oven heating element ELE9327. This Electruepart-coded 1800W circular element matches genuine Leisure/Belling group number 082620838 on selected Leisure ovens and cookers.

Also known as / replaces / compatible part numbers

• ELE9327
• 082620838
• 082613508
• 082506097
• 462900010

What it does / when to replace

The circular fan oven element wraps around the rear fan and heats circulating air for even cooking.

• Oven not heating or slow to reach temperature
• Uneven cooking or cold spots
• Visible cracks, breaks or burn marks on the element

What’s in the pack

• 1 × compatible Leisure circular fan oven heating element

Compatible models

AAP10FRC, AAP10FRK, ACM10FRC, ACM10FRK, AL6CDW, AL6FDW, AP10FRK, AP10FRKP, AP10FRS, AP5PDS, AP5PDW, ARM10FRS, CA1FRS, CM101FRK, CM101FRCP, CM101FRKP, CM10BRC, CM10BRK, CM10FRC, CM10FRCP, CM10FRK, CM10FRKP, CM09B, CMCF93K, CMTE94C, CMTF99N, CM09C, CMCF96K, CMTE94K, CMTF99R, CM09E, CMCF96S, CMTE95C, CMTF99W, CM09R, CMCF96X, CMTE95K, CMTG94C, CM09T, CMCF99B, CMTF94C, CMTF94K, CMTG94K, CM09X, CMCF99C, CMTF94K, CMTG95C, CMCE93K, CMCF99K, CMTF95C, CMTG95K, CMCE96K, CMCF99RP, CMTF95K, L90B, CMCE96S, CMCF99W, CMTF99B, HAP5003, L90R, LEVC54K, LEVC54S, LEVC554W, LEVC54X, LFS6MX, LFS6RPX, NP10FRS, CMCE96X, CMCF99X EB10CRX, EB10FRX, EB10FRXP, EBS6FX, EBS6MEX, EBS6MX, RCM10CRK, RCM10CRS, RCM10FRK, RCM10FRKP, RCM10FRSP, RM10BRS, RM10CRK, RM10CRS, RM10FRK, RM10FRKP, RM10FRS, RM10FRSP, RM5CVK, RM5CVS, RM5CVSV, RM5CVW, RM5PVS, RMS6EMK, ZE10CRA, ZE10FRA, ZE5HVK, ZE5HVS, ZE5HVW, ZES6EMA & Many More

Fitment & care notes

• Electruepart ELE9327: 2-turn, 1800W; about 255 mm length × 208 mm width; 70 mm bracket; ~24 mm tag centres; fixing holes ~56 mm apart.
• Corresponds to genuine 082620838 / 082613508 / 082506097.
• Always isolate power and unplug before replacing the element.

FAQs

Is this a genuine Leisure element?
No. This is a compatible Electruepart ELE9327 element that matches genuine 082620838.

What is the wattage?
1800W.

What are the key dimensions?
About 255 × 208 mm overall with a 70 mm bracket and 24 mm tag centres (Electruepart ELE9327).

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
