Compatible Leisure Gas Oven Flame Failure Safety Device 14FV10 | A091664 / GAS4802

Description

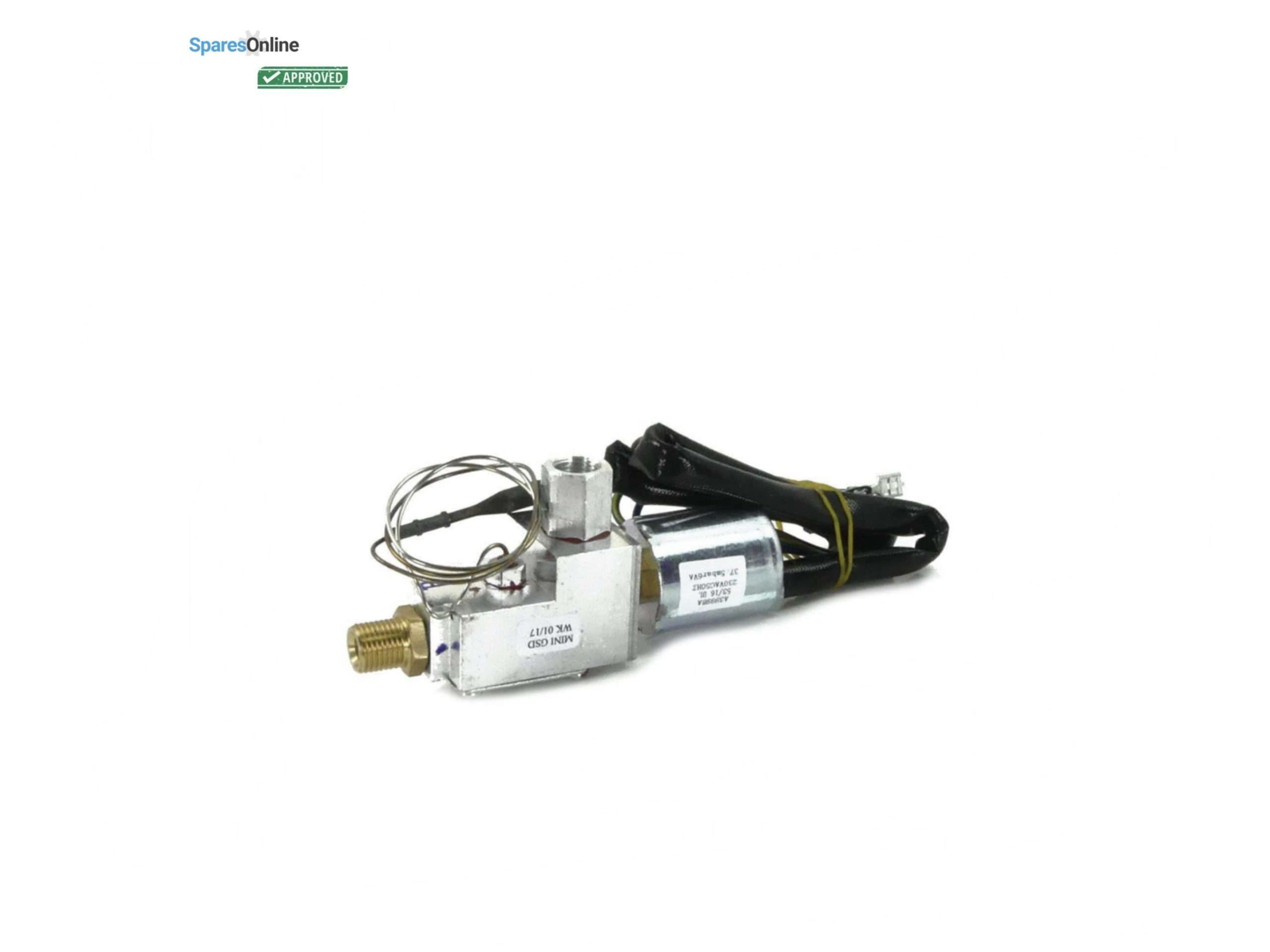

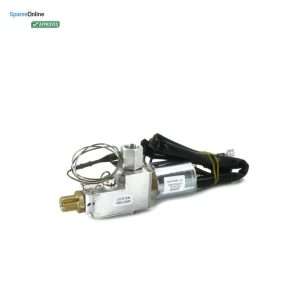

Compatible Leisure gas oven flame failure safety device 14FV10 (also A091664 / GAS4802 / ZQH.115N). This quality compatible flame failure / flame supervision device (FFD / FSD) cuts the gas if the burner flame goes out on selected Leisure range cookers.

Also known as / replaces / compatible part numbers

• 14FV10
• 14-FV-10
• A091664
• GAS4802
• ZQH.115N
• ZQH115N
• RNGA091664
• RM14100
• FVLA091664

What it does / when to replace

The flame failure safety device monitors the burner flame and shuts off the gas supply if the flame extinguishes. Fit a replacement if the burner will not stay lit or the flame does not establish correctly after ignition.

• Burner lights then goes out after a few seconds
• Flame fails to rise / establish after about 15-30 seconds
• Gas cut-off suspected on a cooker that previously worked

What’s in the pack

• 1 × compatible Leisure gas oven flame failure safety device 14FV10

Compatible models

5331, 5337, 5420, 5487, 5593, 5630 & Many More

Fitment & care notes

• Rated 230 V AC / 50 Hz (ZQH.115N type; Class B 50 mbar).
• Gas work must be carried out by a Gas Safe registered engineer.
• This is a quality compatible FFD / FSD under supplier code 14FV10 covering A091664 applications – not a boxed Rangemaster / Leisure OEM carton part.

FAQs

Is this a genuine Leisure OEM device?
No. This is a quality compatible flame failure safety device listed as 14FV10 (also sold against A091664 / GAS4802).

What are the electrical ratings?
230 V AC, 50 Hz (ZQH.115N / Class B 50 mbar type).

Who should fit it?
A Gas Safe registered engineer – incorrect gas fitting is dangerous.

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
