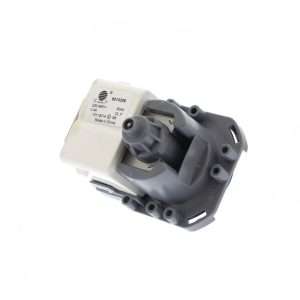

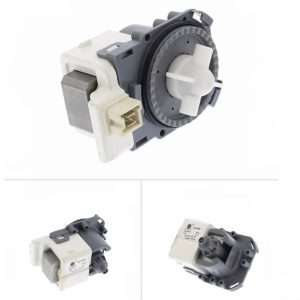

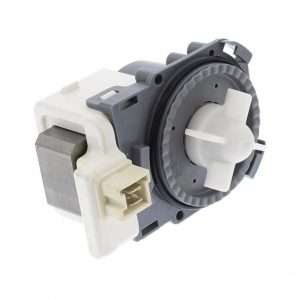

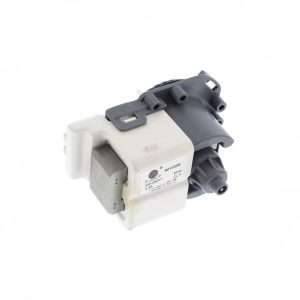

Compatible Tricity Bendix Washing Machine Drain Pump Bayonet Front C00266228 / 81725

Description

Compatible Tricity Bendix washing machine drain pump C00266228 / 81725 (also 49023062 / 482000072471). This is a bayonet-mount 30W drain pump with front RAST 5 terminals for Tricity Bendix laundry appliances that use the three-lug Askoll M50 style pump.

Also known as / replaces / compatible part numbers

• C00266228
• 81725
• 49023062
• 482000072471
• Askoll M50
• 51-AS-TWFT
• Hanyu 9010206

What it does / when to replace

The drain pump empties wash and rinse water from the machine. Fit a replacement if the appliance will not empty, leaves water in the drum, or the pump runs noisily or screeches.

• Machine not draining, or water left in the drum
• Noisy or screeching pump during drain
• Error codes linked to drain / pump faults on some models

What’s in the pack

• 1 x compatible bayonet drain pump (front terminals)

Compatible models

AW1000W, AW1001W, AW1002W, AW1200W, AW1201W, AW1202W, AW1260S, AW1260W, AW1400W, AW1401W, AW1402W, AW1460W, AW1560W, AW850W, BIW103W, BIW104W, BIW105W, BIW123W, BIW125W, BIW126W, BIW145W

Fitment & care notes

• Bayonet three-lug mount with front-facing RAST 5 terminals – match the old pump orientation before fitting.
• Rated 220-240V / 50Hz / 30W; sealing face about 61 mm diameter.
• Always isolate power before work. Clear the pump filter and hoses of debris when fitting.

FAQs

Is this a genuine Tricity Bendix OEM pump?
No. This is a compatible replacement that matches OEM references including C00266228, 49023062 and 482000072471, listed here for Tricity Bendix appliances.

What are the electrical ratings?
220-240V, 50Hz, 30W, with front RAST 5 terminals.

How do I confirm fit?
Match the bayonet three-lug mount, front terminal layout and the number on your old pump, plus your model list.

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
