Compatible Whirlpool Fridge Freezer Thermostat Kit K59-L1102 / 481927129103

Description

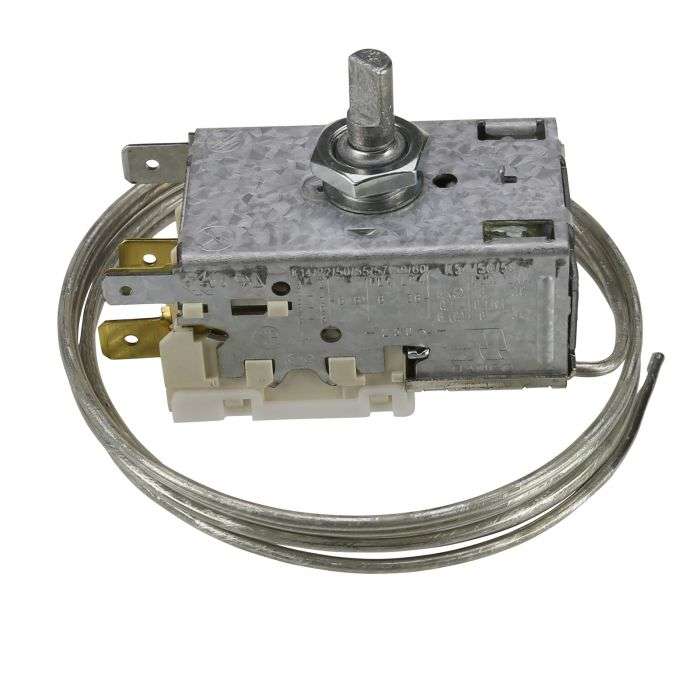

Compatible Whirlpool fridge freezer thermostat kit matching Ranco K59-L1102 (Whirlpool 481927129103). Mechanical cold-control thermostat kit for a wide range of fridge and fridge freezer brands that use this Ranco type.

Also known as / replaces / compatible part numbers

• K59-L1102
• 481927129103
• VT9

What it does / when to replace

The thermostat controls compressor cycling to regulate cabinet temperature. Fit a replacement if the fridge runs continuously, will not get cold enough, or freezes food in the fresh-food section because the cold control has failed.

• Fridge too warm or too cold
• Compressor runs continuously
• Failed cold-control thermostat

What’s in the pack

• 1 x compatible Ranco-type fridge thermostat kit (K59-L1102)

Fitment & care notes

• Typical capillary length about 1200 mm with three 6.3 mm spade terminals – match the capillary route and terminal positions to the original.
• Cold cut-out about -26.0°C / cut-in 3.5°C; warm cut-out about -11.0°C / cut-in 3.5°C on the matched Ranco K59-L1102 characteristic.
• Used across many brands including Whirlpool, Indesit, Hotpoint, Bosch-group, Beko-group, Electrolux-group and others that accept K59-L1102.

FAQs

What is K59-L1102?
A Ranco mechanical refrigerator thermostat also sold as Whirlpool 481927129103.

How long is the capillary?
About 1200 mm on the matched K59-L1102 type.

Is this brand-specific?
No. It is a compatible Ranco-type kit used on several fridge brands; match the thermostat code and capillary style on your old control.

If you are unsure if this is the correct part, message us with your model or the number on the old part and we will advise.
